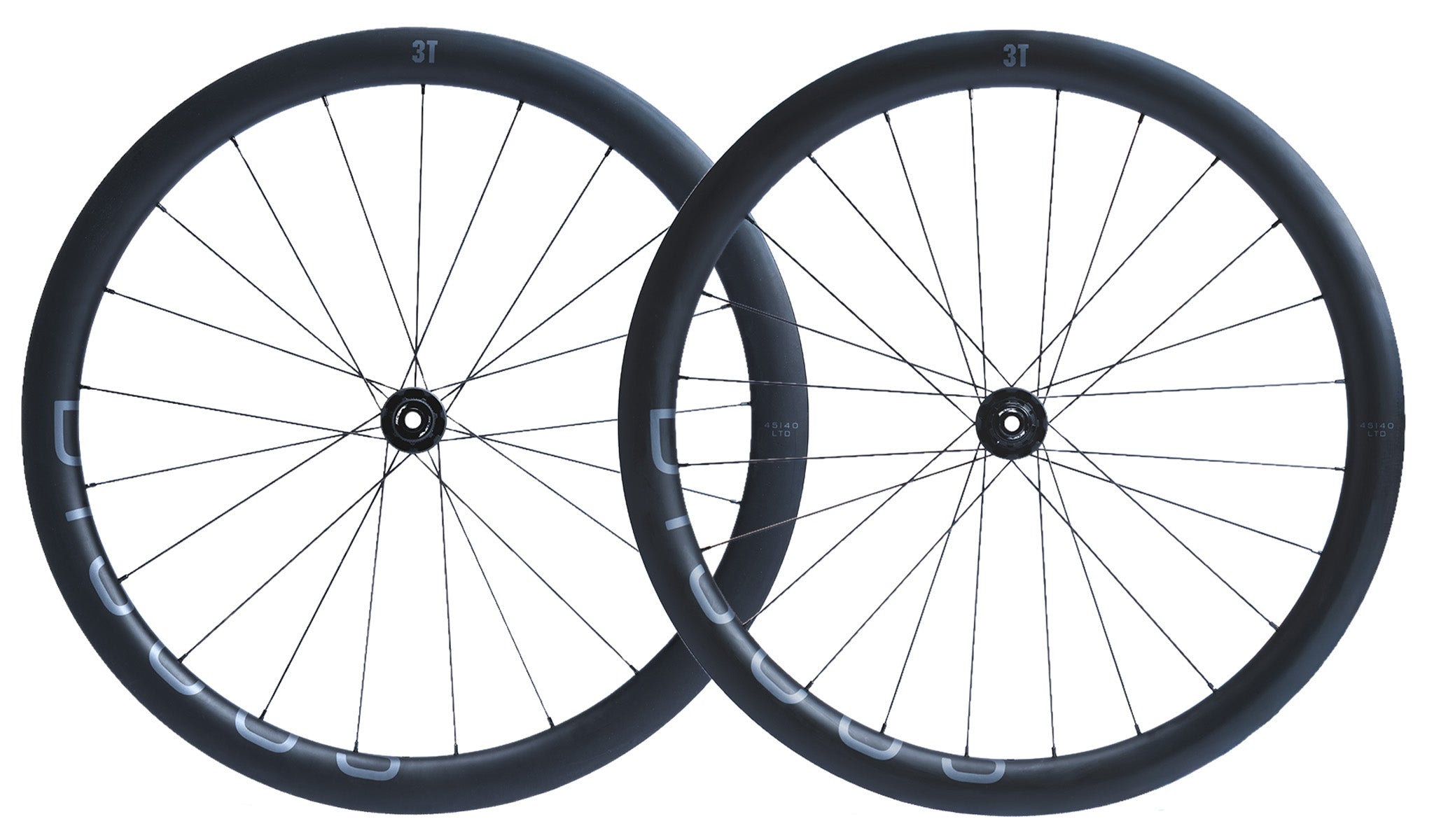

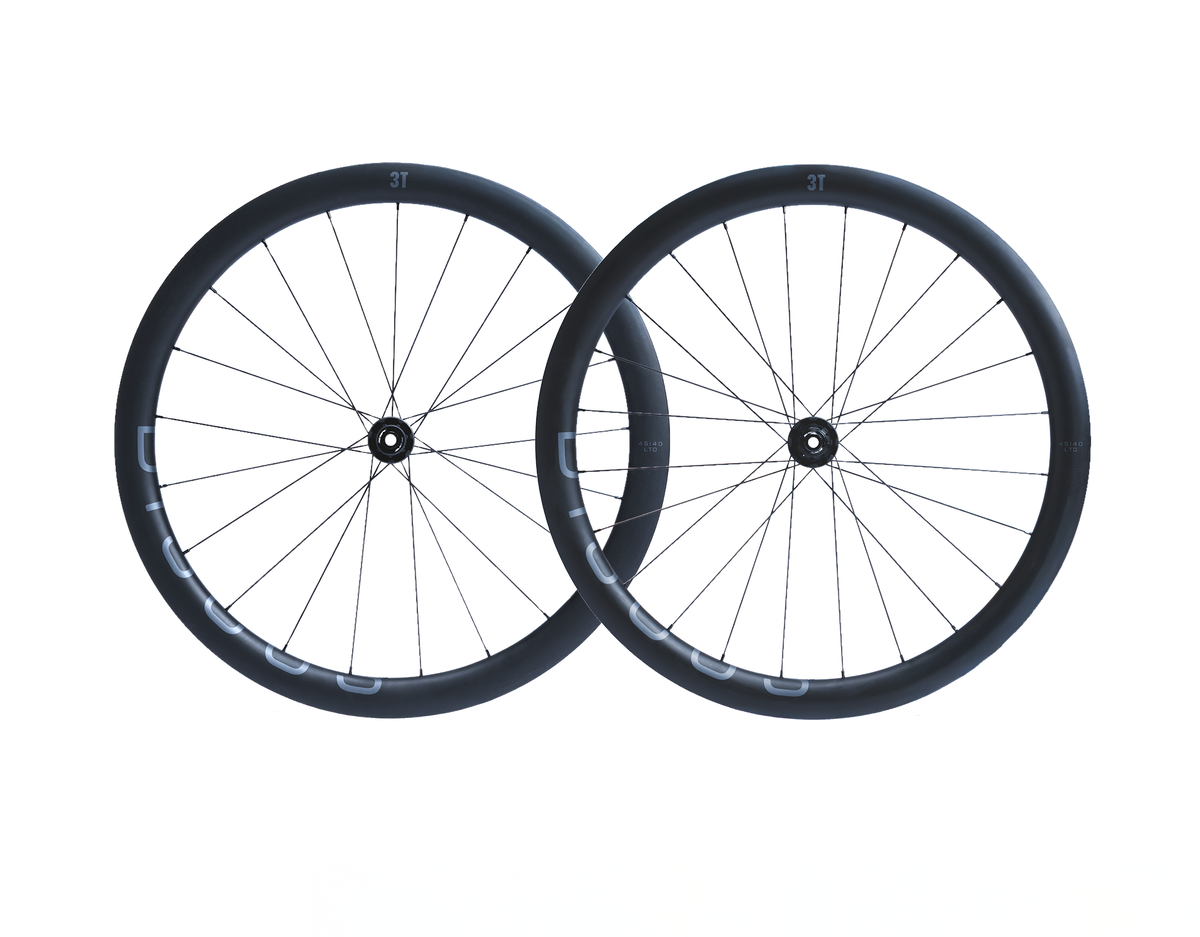

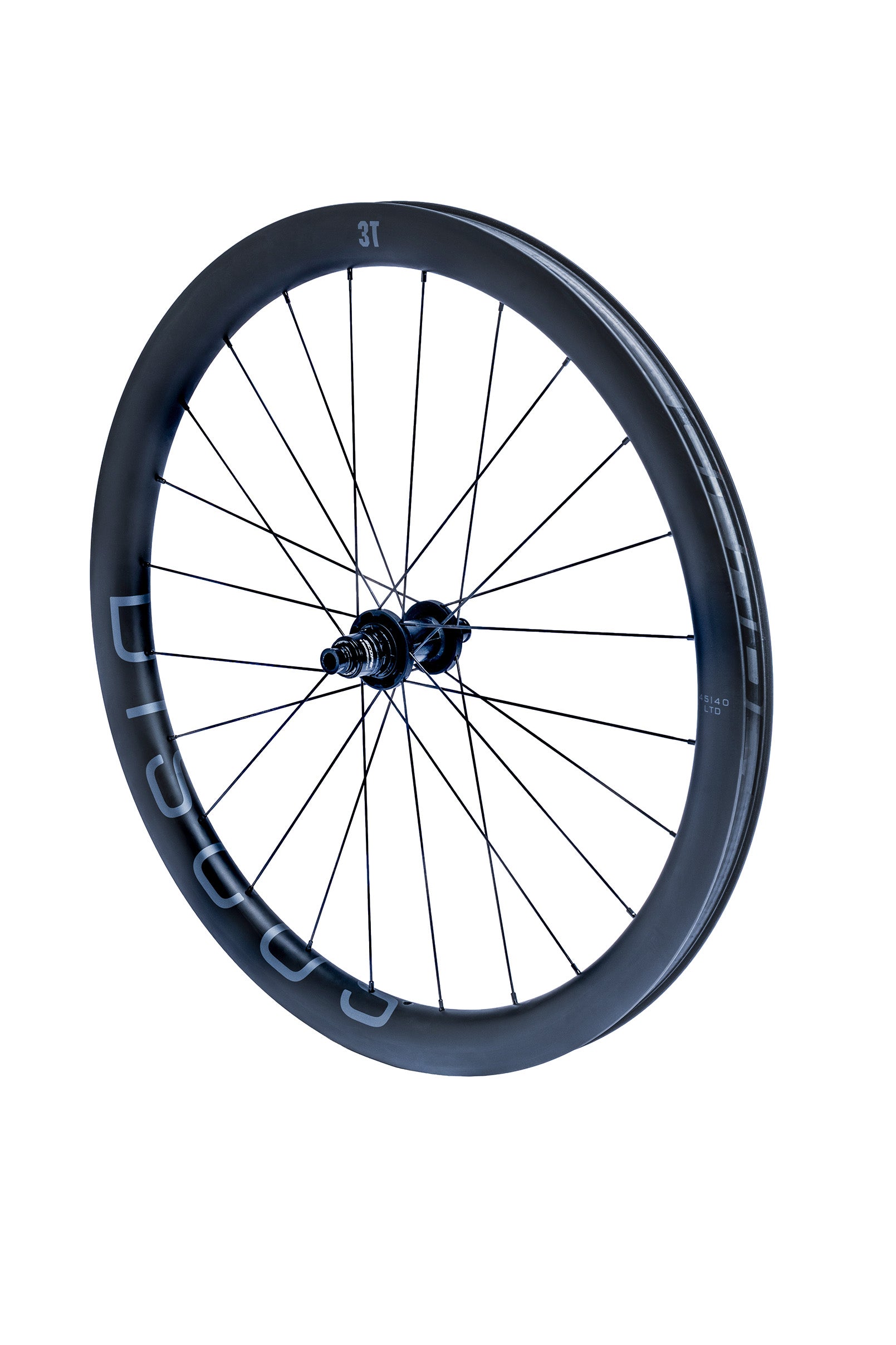

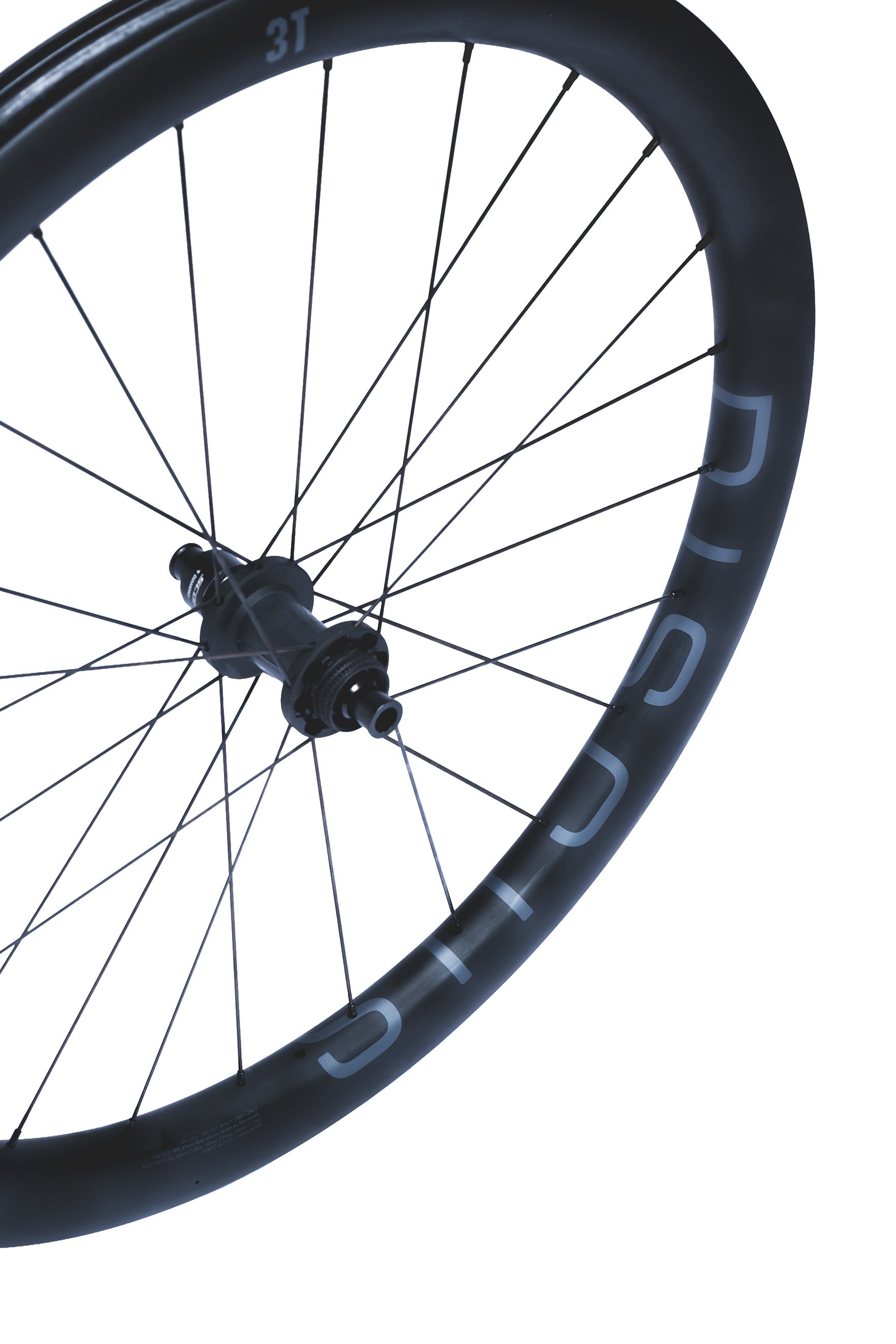

DISCUS 45 | 40 LTD WHEELSET
2.098 €
When designing the new Discus 45 | 40 LTD, we didn’t just focus on performance or aerodynamics.
Our goal was to create a modern wheelset that delivers a refined balance of key features: reactivness, smooth rolling,
comfort, durability, and long-lasting performance.
Shipped in 48-72 hours
Free shipping on orders over 150€
Specifications are subject to change without notice
VAT and Duties included for EU orders
VAT and Duties not included for orders outside EU except for UK and CH
Contact us
Find a dealer
Looking for a dealer near you? Click here to search for authorized dealers worldwide and locate the nearest one to your location.
More about: Dealer finder
More about shipping & payments
To assure you the best possible delivery service, 3T operates only with top international couriers. All of our deliveries are managed by the DHL group. Deliveries are around 5 working days from time of shipment, except for the “Custom” category: for these products, considering the unique and handcrafted finishing process, deliveries are around 20 days from receipt of the order.
More about: Shipping and Returns
More about returns and refunds
By browsing and purchasing on our website, you agree to our Terms & Conditions. Please review them for detailed information on your rights, order processing, payments, and returns.
More about: Tearms of service
Notify me when available
SPECIFICATIONS
| Rim Size | ETRTO 622 x 29c, (28”/700c) 40mm wide, 45mm deep |
| Rim Spec | Hookless, specific angle drilling |
| Rim Material | Unidirectional carbon - ultralight layup |
| Spokes | Sapim CX-Sprint, 21 Front/24 Rear |
| Hubs | Scope for 3T Hubs (Scope Race Series) |
| Nipples | Sapim Polyax 7050 secure-lock |
| Front Hub Spec | Thru-axle 100x12mm |
| Rear Hub Spec | Thru-axle 142x12mm |
| Rear Hub Compatibility | Shimano HG, Sram XDR, Shimano Microspline, Campagnolo N3W |
| Wheel weight (+/- 5%) | 1439 g |
| RECOMMENDED TIRES | MIN 40mm, MAX 60mm (Width As Measured) |
A fully re-engineered aero wheelset, evolved from the previous generation.
Same philosophy, new product.
With a 45mm rim depth, 40mm external width, and 29mm internal channel, the Discus 45 | 40 LTD is optimized for tires ranging from 40mm to 60mm WAM.
Same Philosophy, Evolved Product
At 3T, our development philosophy is clear: continuous evolution.
Just as we reimagined the Racemax2 while staying true to its original concept, we redesigned the Discus 45 | 40 LTD based on real-world feedback and wind tunnel testing. The result? A completely new aero wheelset that preserves the comfort of its predecessor while offering a superior balance of aero performance, reactiveness, reliability, and weight.
NoseTail Design
The carbon rims of the Discus 45 | 40 LTD feature the truncated NoseTail shape—the ideal compromise for aerodynamic efficiency and bike handling, even in crosswinds.
This design delivers aero performance comparable to deeper rims, ensuring optimal airflow toward the downtube of modern aero frames, like our Racemax2.
The 29mm internal channel strikes the perfect balance between aerodynamics, weight, and comfort. Wide internal channels allow the tire to align seamlessly with the rim for improved stability, precise handling, and enhanced cornering confidence.
It All Starts with Tires
Like frame design, rim design begins with tires. Wide tires require wide rims to avoid airflow disruption between tire and rim.
With the market now dominated by tubeless-ready tires over 40mm, the Discus 45 | 40 LTD rims are engineered for 40–60mm WAM tires, setting the new standard for gravel performance.
Performance Meets Comfort
With 21 Sapim CX-Sprint spokes up front and 24 at the rear, these wheels guarantee the perfect balance of comfort, strength, and performance.

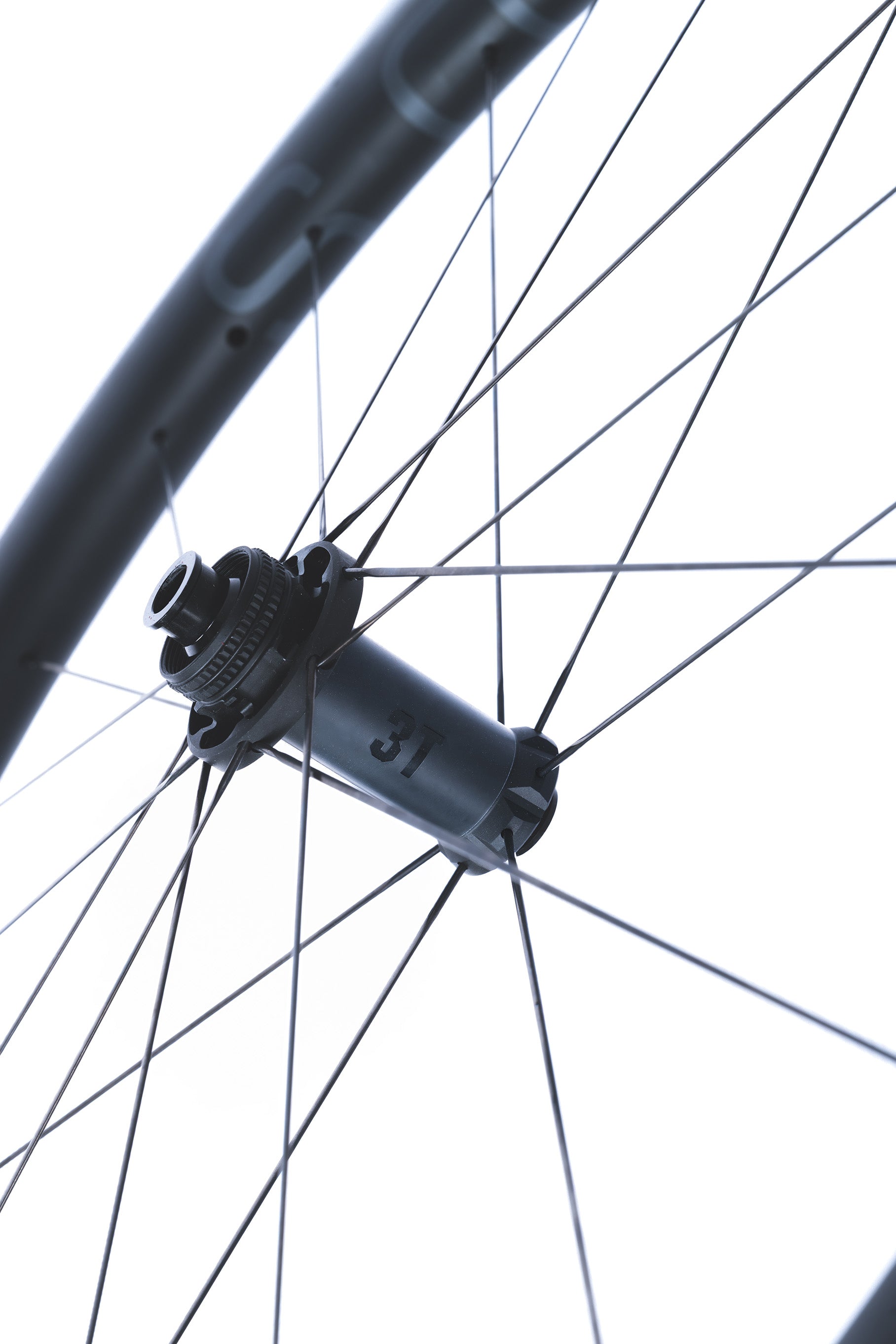

High-performance Scope R-Series hubs ensure smooth rolling and durability, featuring a labyrinth seal system that keeps dirt out even under extreme conditions.
Total weight: 1439 g per set, over 200 g lighter than the previous generation.
Hookless Technology
Tubeless tires allow for lower pressures, reducing rolling resistance and minimizing punctures. The hookless rim design of the Discus 45 | 40 LTD is ideal for today’s large tubeless tires.
Hookless rims are lighter, laterally stiffer, and more impact-resistant—perfect for gravel riding.
