UNO GHIAIA

1,000 €

The form of the Uno cockpit grows out of a continuous tradition of studying how the rider holds, controls, and moves on the bike.

DOWNLOAD MANUAL

width

Free shipping on orders over 150€

Ready to Ship in 48 - 72 Hours

Bicycles and components available in our warehouse are ready to be shipped within a shorter timeframe. Each model has already completed the production process and quality checks, ensuring a product built with the same care and attention to detail.

The average shipping time is 48-72 hours after order confirmation.

About VAT & Duties

VAT and Duties included for EU orders

VAT and Duties not included for orders outside EU except for UK and CH

Split your payment with PayPal

Pay for your order in convenient monthly payments by choosing PayPal at checkout.

Shipping and Payments

To ensure you receive the best possible delivery service, 3T works exclusively with top-tier international carriers. All our shipments are handled by the DHL Group.

Delivery times are approximately 5 business days from the date of shipment, with the exception of products in the “Custom” category: for these items, due to the unique handcrafted finishing process, delivery takes approximately 20 days from the date the order is received.

Discover More
Returns and Refunds

By browsing and purchasing on our website, you agree to our Terms & Conditions. Please review them for detailed information on your rights, order processing, payments, and returns.

Discover More
Find a dealer

Find the dealer nearest you. Search among authorized retailers worldwide and find the one closest to your location.

Discover More
Contact us

Visit the Contact Us page to submit your request. Our team will respond as soon as possible.

Discover More
Notify me when available
First Name
Last Name
Email
Phone
Subject
Description

UNO GHIAIA

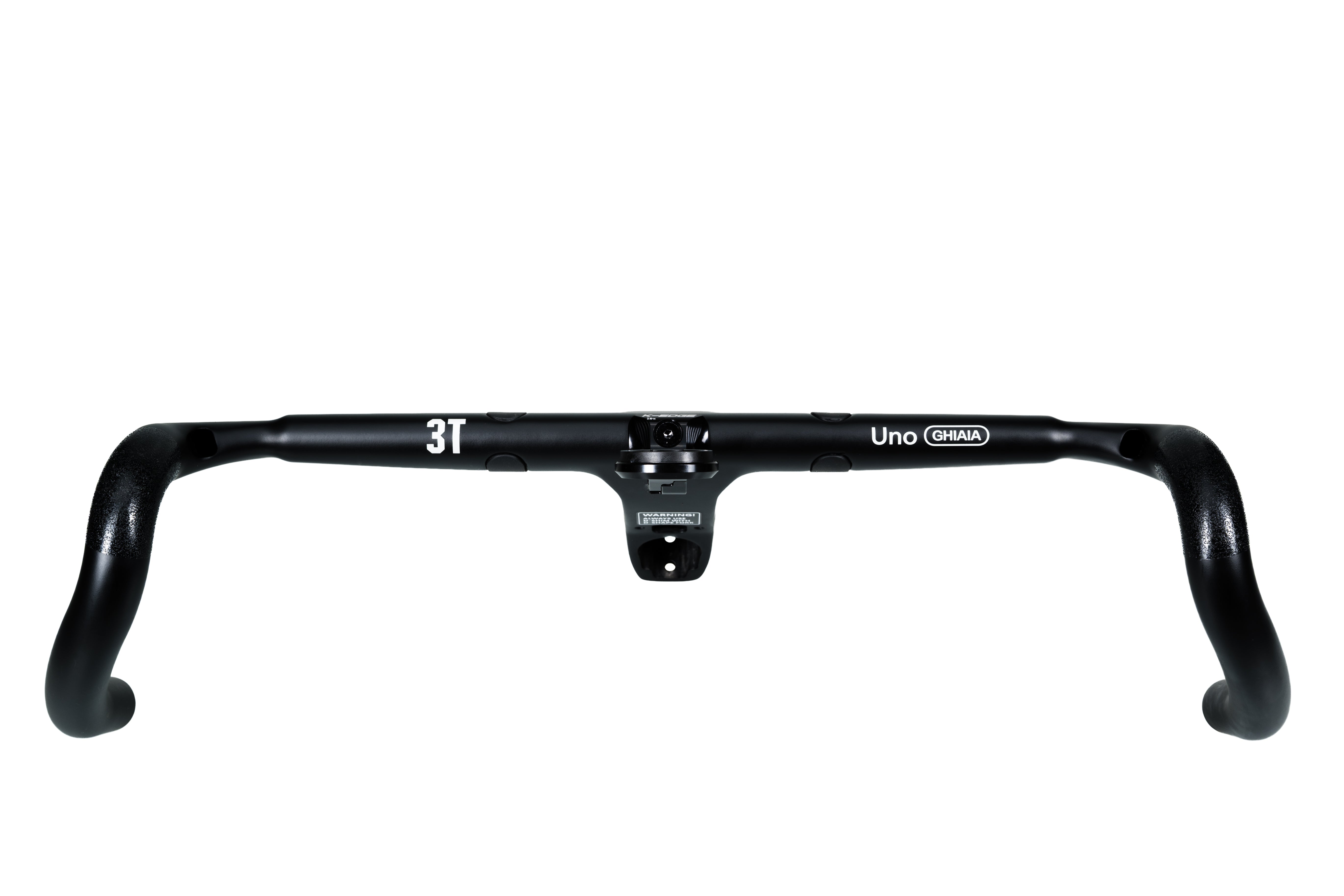

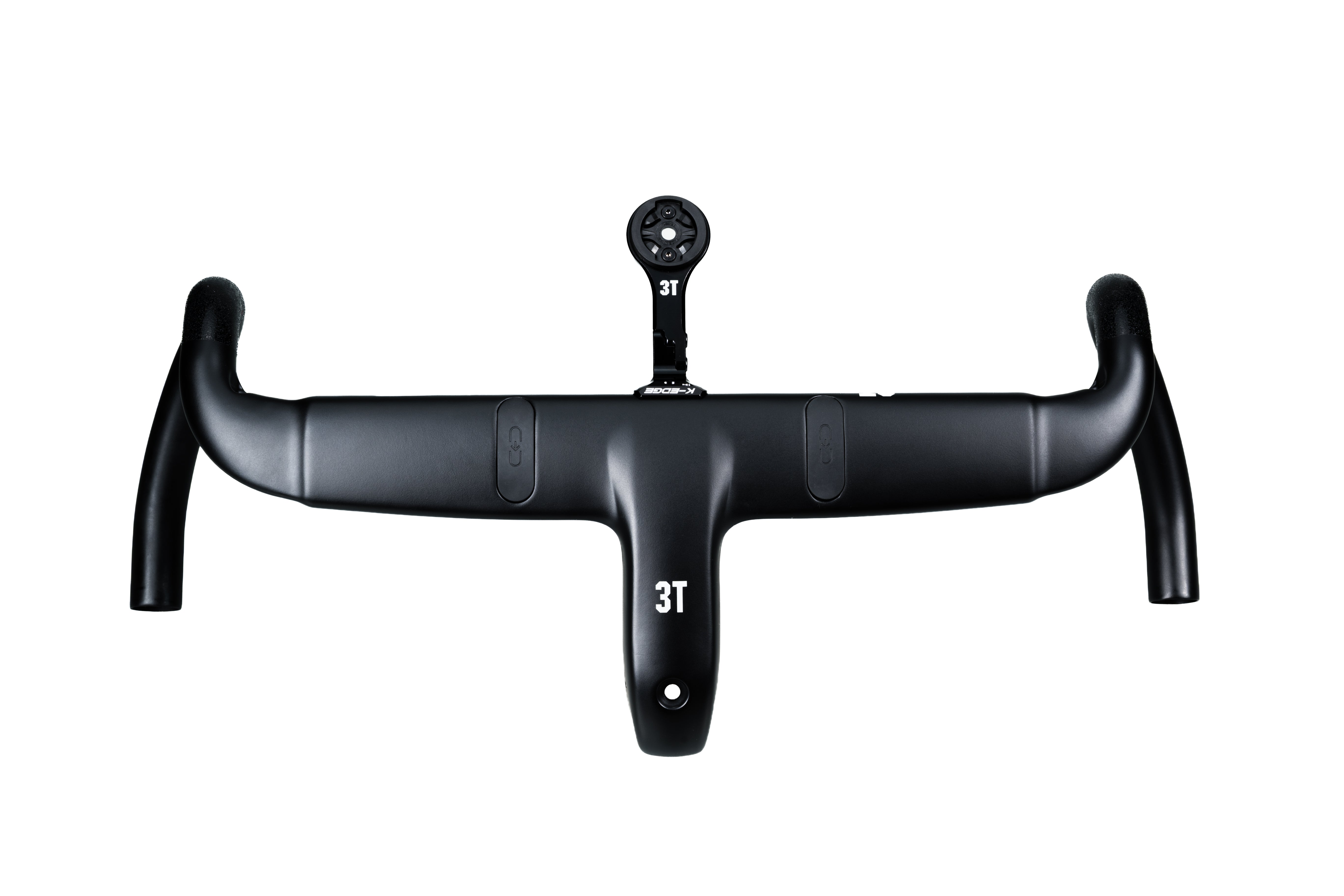

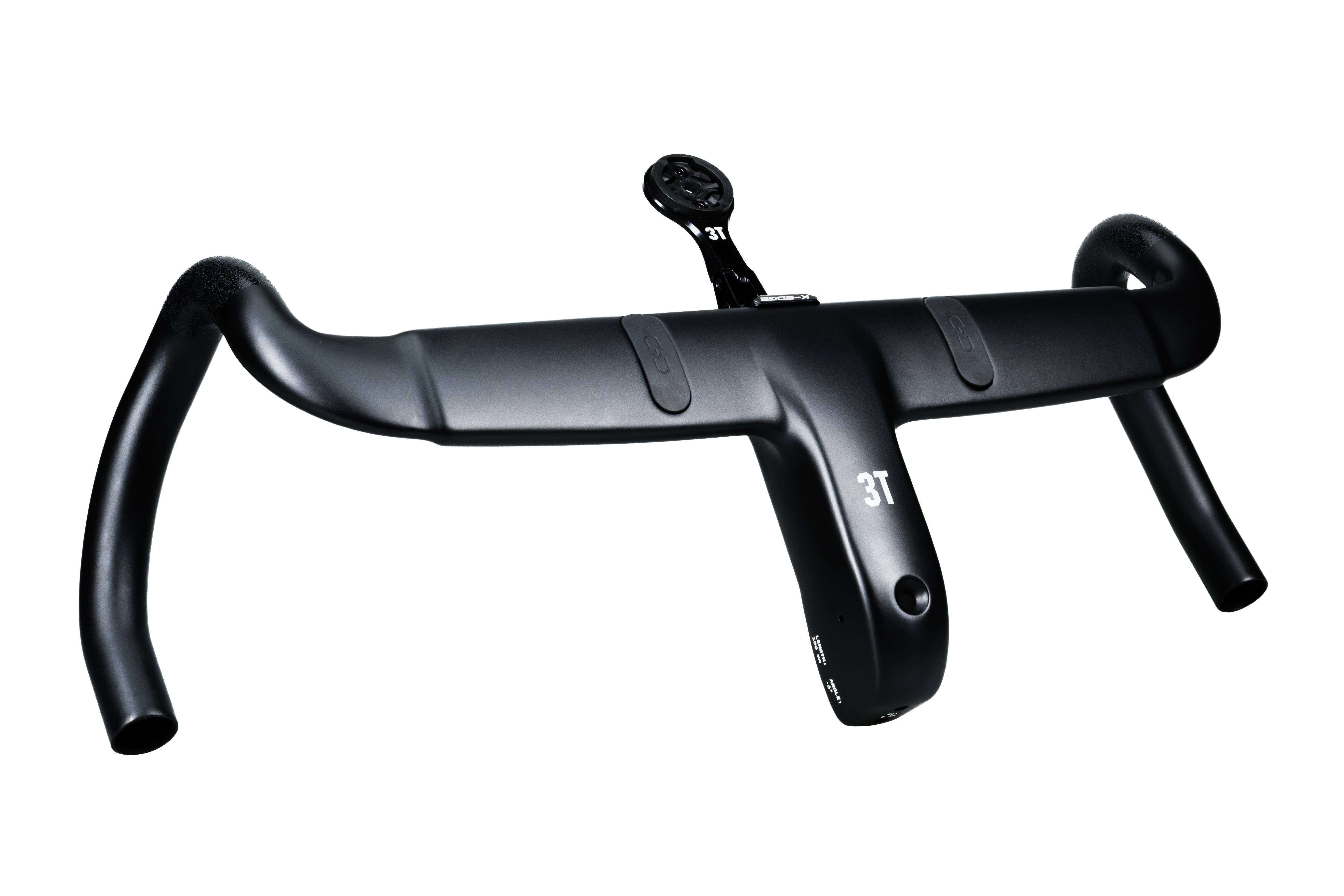

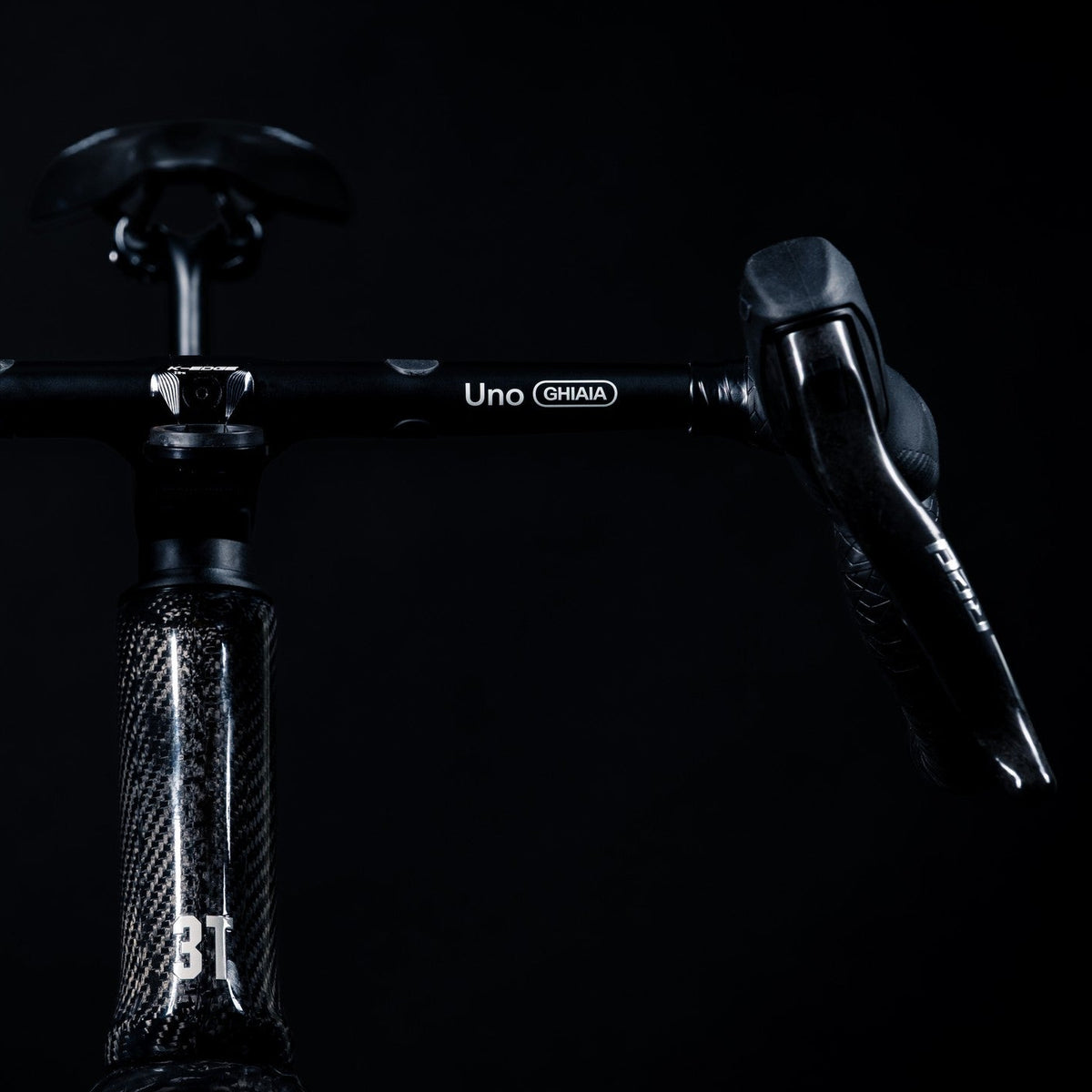

Designed for performance gravel, Uno GHIAIA is our integrated carbon aero cockpit, combining speed, control and comfort when the surface becomes unpredictable.

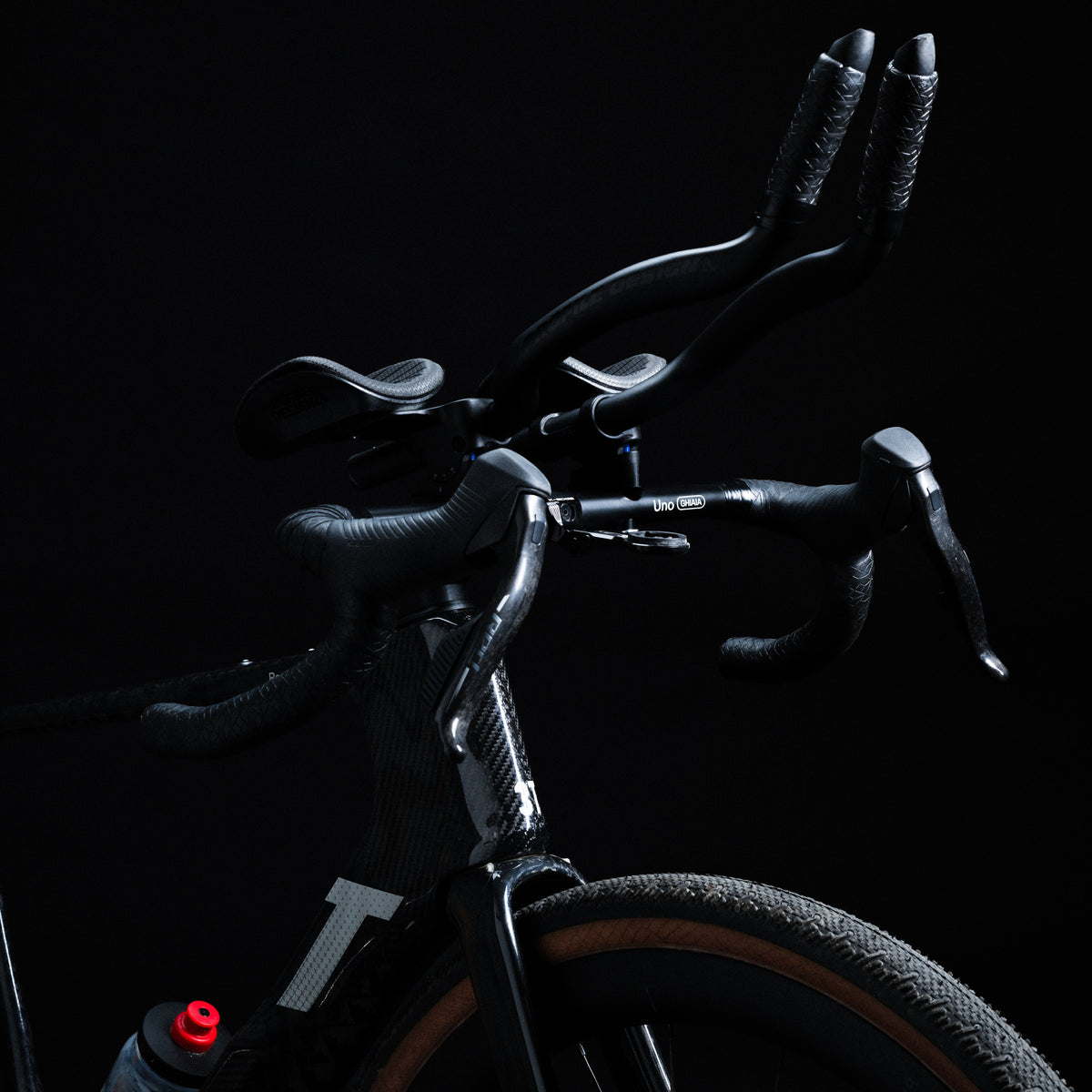

The familiar shape of the Aeroghiaia remains recognizable in Uno GHIAIA, now developed with the stem as a single structure and featuring integrated mounting points for dedicated Profile Design aerobar.

The Uno GHIAIA is available in 3 different widths and stem lengths to suit different riders and bike setups.

DESIGN IN THE DETAILS

ERGO-AERODYNAMICS

The center section balances the shapes required for aerodynamic efficiency with the ergonomics needed wherever the rider places their hands.

HIGH STIFFNESS-TO-WEIGHT RATIO

Compared with the corresponding More² handlebar-and-stem combinations, the integrated carbon structure delivers greater stiffness while reducing total weight by approximately 70 grams.

EXTENSIONS-READY

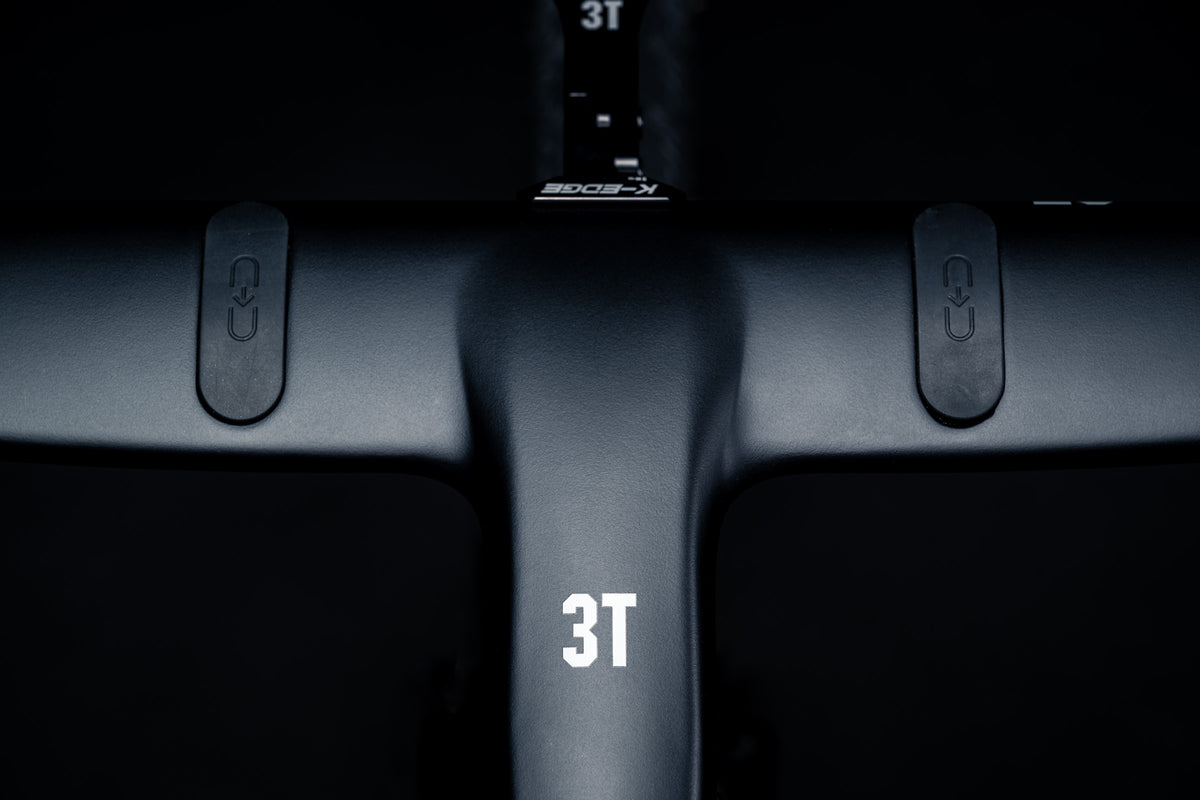

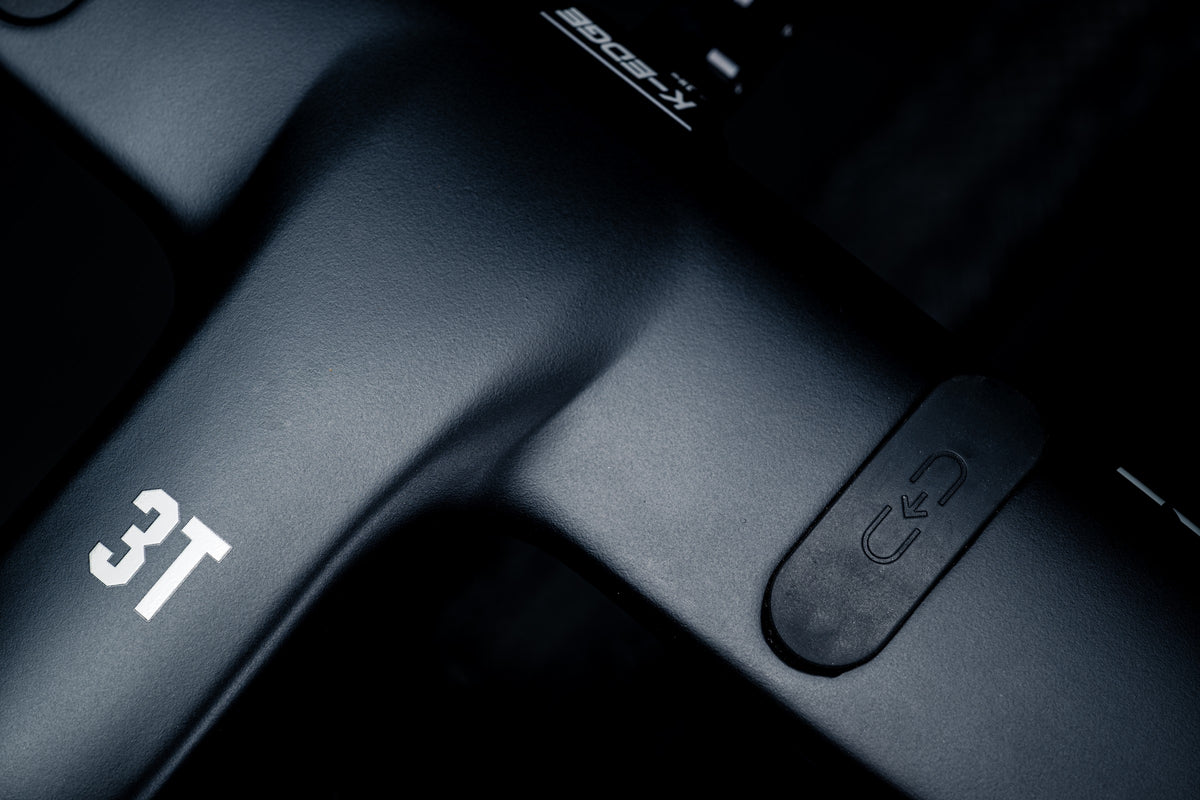

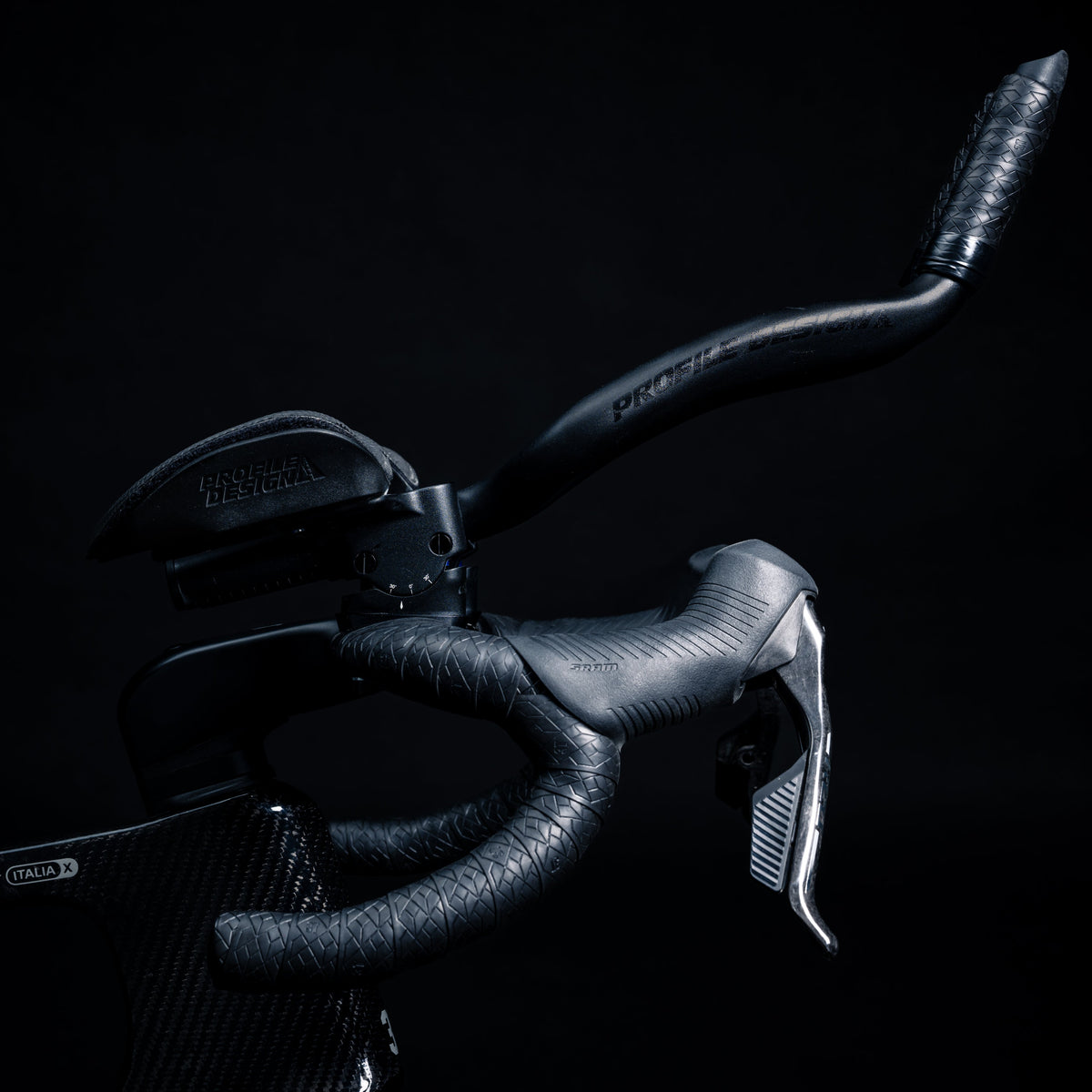

Integrated mounting points allow aero extensions to be fitted directly to Uno. Flush covers are included as standard, and dedicated adapters make the cockpit compatible with the Profile Design A3 System

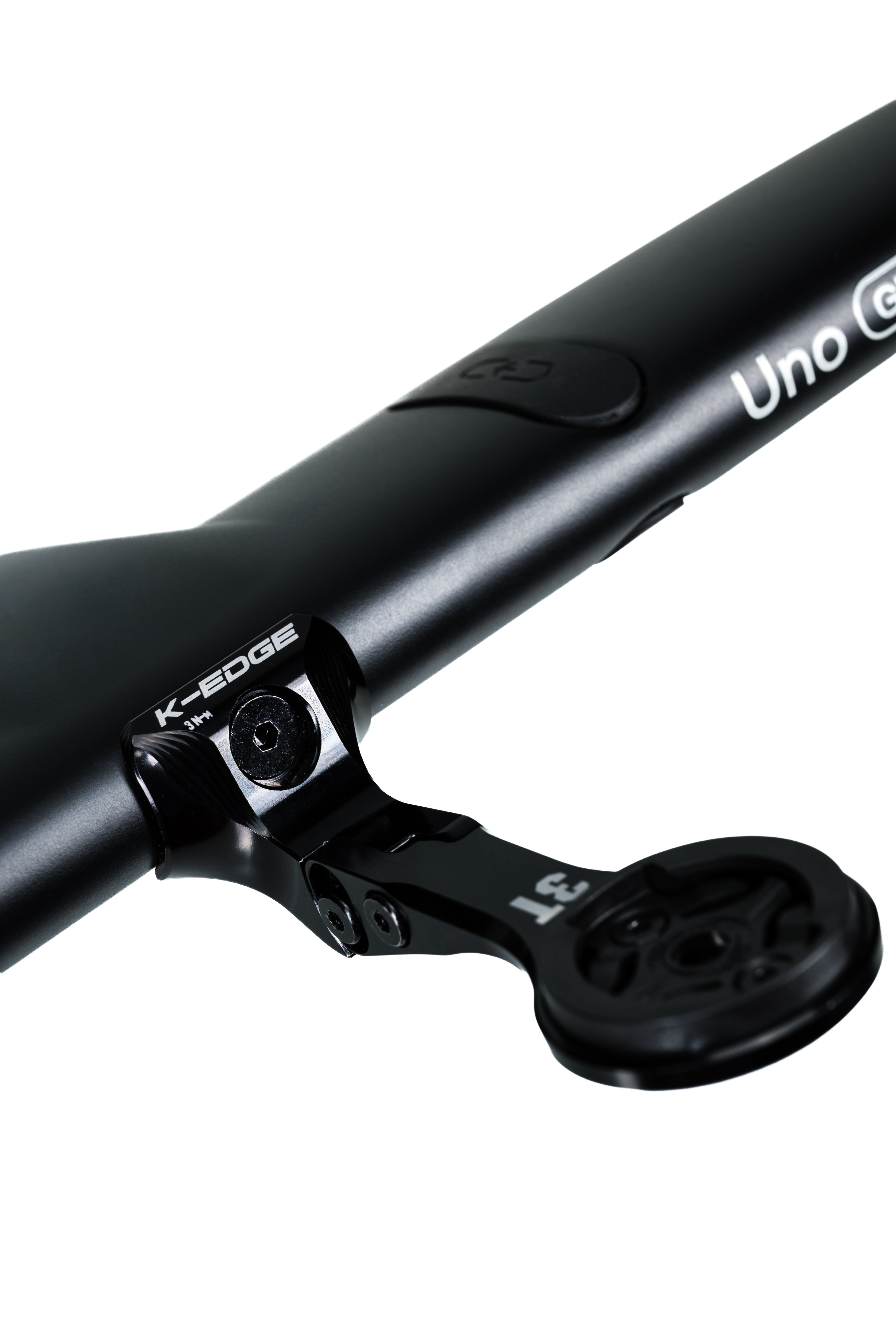

DEDICATED COMPUTER MOUNT BY K-EDGE

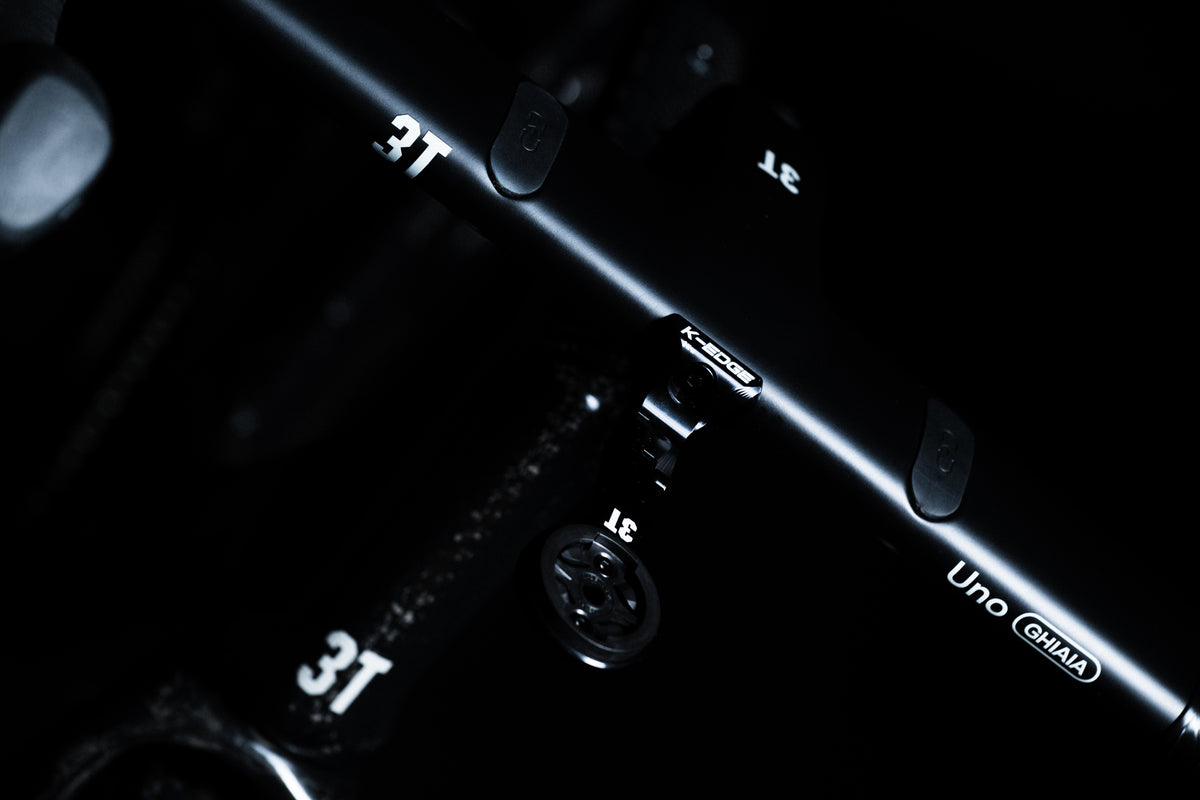

A removable and adjustable K-Edge mount positions the computer in front of the cockpit, with a fully integrated arm designed to minimize aerodynamic drag.

BAR WIDTHS

The Uno GHIAIA cockpit is available in 3 widths and different stem lengths. Uno GHIAIA have a −6° degree stem angle and a top cover 3 mm lower than 3T More² stem.

MULTIFLARE DESIGN

The form of the Uno cockpit grows out of a continuous tradition of studying how riders hold, control, and move on the bike.

With its 23° multi-angle flare, the Uno GHIAIA cockpit is designed for fast gravel performance, specifically to meet the demands of fast gravel riding.

FULLY COMPATIBLE 3T BIKE RANGE

The Uno GHIAIA cockpit is compatible with both traditional 1 1/8” steerer tubes and D-shaped 1 1/8” steerer tube systems, using the dedicated D-shim for the latter. This provides greater flexibility in cockpit setup and future upgrades.

Specifications

MATERIAL
Unidirectional carbon - ultralight layup
CABLE ROUTING
Internal cable routing channels
STEERER DIAMETER
3T D-shape steerer tube (3T integrale) and 3T round 1 1/8” steerer tube (3T Semi-integrale)
3T MODELS COMPATIBILITY
3T Semi-Integrale frames (Ultra2 ITALIA, Primo2 WPNT using the dedicated spacer kit) or, by adding the dedicated D-shim, 3T Integrale frames (Racemax2 ITALIA, Extrema ITALIA, Strada ITALIA, Strada WPNT, Racemax WPNT, using the dedicated spacer kit)
AERO BARS COMPATIBILITY
Profile Design A3 system (A3 brackets ready) using the dedicated 3T Uno Adapter kit
WEIGHT (+/-5%)
320 g (Size 40 cm × 100 mm)

Geometries

Size 38 40 42
L1 LENGTH (mm) 80,90,100 90,100,110,120 100,110,120
W1 Hood-to-hood (mm) 380 400 420
W2 Drop-to-drop (mm) 460 480 500
R1 Reach (mm) 74 74 74
R2 Reach (mm) 86 86 86
D1 Drop (mm) 110 110 110
F1 Drop flare (degrees) multi-angle (23° average) multi-angle (23° average) multi-angle (23° average)
A1 ANGLE -6° -6° -6°

Swipe to see all sizes →

* Rider heights are approximations. For more accuracy, compare stack/reach with your current bike.

** Actual stack height is 15 mm higher due to Apto cable cover.
