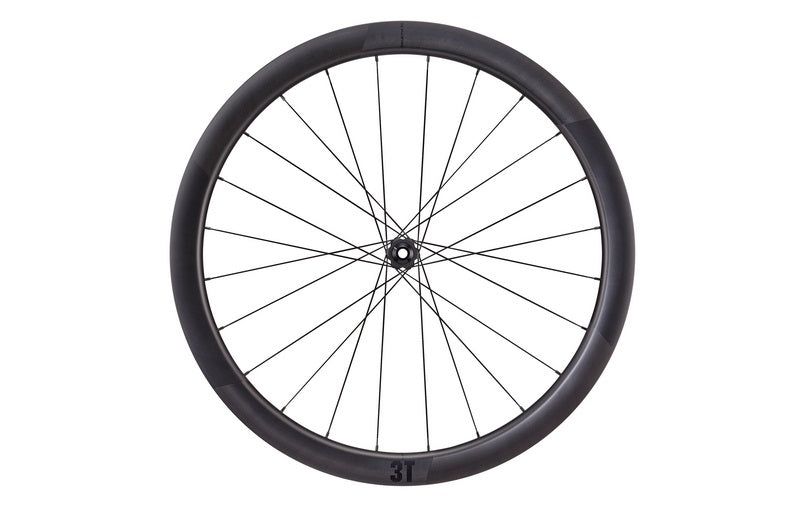

DISCUS 45 | 32 LTD

1.600 €

700c wide-body aero carbon wheels optimized for 28-30mm road tires and 32-40mm gravel tires

Shipped in 48-72 hours

Specifications are subject to change without notice

Additional info

Free shipping on orders over 150€

About VAT & Duties

VAT and Duties included for EU orders

VAT and Duties not included for orders outside EU except for UK and CH

More about shipping & payments

To assure you the best possible delivery service, 3T operates only with top international couriers. All of our deliveries are managed by the DHL group. Deliveries are around 5 working days from time of shipment, except for the “Custom” category: for these products, considering the unique and handcrafted finishing process, deliveries are around 20 days from receipt of the order.

More about: Shipping and Returns

More about returns and refunds

WIDER, STRONGER, FASTER

narrow = aero
wide = aero
(& comfort & grip)

Optimized to be the fastest wheel with 28-30mm road tires, perfect for your Strada.

45mm deep rim engineered to perform like a 60mm depth (fast without crosswind problems)

Optional button

REALFAST AERODYNAMICS

The bike industry is great at optimizing and testing bikes and wheels with 21mm or 23mm tires. It creates impressive drag and weight numbers, but both suffer once you put realistic tires on.

We believe in RealFast, engineering and testing for the real world. 28-30mm tires are the smart choice for comfort and grip so the Discus 45 | 32 was engineered around those tire widths.

The chart shows the Discus 45 | 32 (red graph named C45 WIDE) is as fast as a deep rim (grey graph), using tires with the same measured, effective width. Note: due to the big inner width, a tire labeled “25mm" on the Discus 45 | 32 fits the same as a “28mm” tire on the deep rim. Same drag, comfort & grip, but of course the tire on the Discus 45 | 32 is lighter (50g for the pair).

Optional button

NOSETAIL DESIGN

The Discus 45 | 32 is the fastest wheel at this rim depth; in fact it tests as fast as other 60mm deep rims. So you have the advantages of a shallower rim, like ease of handling in crosswinds, and the speed of a deeper rim. The Discus 45 | 32 achieves this with its unique NoseTail design. By definition rim design is a compromise, because it whatever shape is aerodynamic on the front half doesn’t work so well 180 degrees later when it’s backwards.

The NoseTail shape developed by the legendary Dave Kennedy (an aerodynamics professional for over 50(!) years) and 3T’s Head of Design Gerard Vroomen actually sacrifices some performance on the front half of the wheel in favor of working better on the back half. Not only do the two effects cancel each other out, but the resulting shape also requires less rim depth and better guides the airflow from the rear of the front wheel onto the downtube.

Optional button

GO BIG OR GO HOME

If you want even more comfort on the road or plan to ride gravel, the Discus 45 | 32 has another trick up its sleeve: the rim shape is very insensitive to tire size.

So where the drag of the deep rim “blows up” once you get past a certain tire size (grey graph), the Discus 45 | 32 works great with oversized road tires (red graph) that are even larger than the ones mounted on the deep rim. In fact, you can see the oversized tire performs almost as well as the two wheels with the regular 29.5mm tires.

Optional button

DESIGN IN THE DETAILS

SPECIFICATIONS
Rim Size ETRTO 622 x 25c, (28”/700c) 32mm wide, 45mm deep
Rim Spec Tubeless-Ready Clincher, specific angle drilling
Rim Material Unidirectional carbon - ultralight layup
Spokes Sapim CX-Ray Straight-pull, stainless steel, black finish, double butted aero, 24 Front/24 Rear
Hubs 3T GW Bombproof Hubs, Centerlock type, oversized light alloy hub bodies, spindles & freehub body, adjustable bearings, black satin anodized
Nipples Sapim chrome-plated brass
Front Hub Spec Thru-axle 100x12mm
Rear Hub Spec Thru-axle 142x12mm
Rear Hub Compatibility 10/11s Shimano freewheel or SRAM XDR Driver body included
Wheel weight (+/- 5%) 1640g
