EXTREMA ITALIA
FORCE E1/XX SL EAGLE TRANSMISSION AXS 1X12 DISCUS 45/40 CTi
11.500 €
Built to order 8-12 weeks
Free shipping on orders over 150€
Specifications are subject to change without notice
A 3T bike shipped to you is
assembled with everything including gears, brakes and headset tuned.
Watch our unboxing and assembly video
-> Link to Unboxing and assemblying your new 3T bike
All you need to do is:
1 - insert the front wheel
2 - mount the bars on the stem
3 - install the
seatpost
VAT and Duties included for EU orders
VAT and Duties not included for orders outside EU except for UK and CH
Contact us
Find a dealer
Looking for a dealer near you? Click here to search for authorized dealers worldwide and locate the nearest one to your location.
More about: Dealer finder
More about shipping & payments
To assure you the best possible delivery service, 3T operates only with top international couriers. All of our deliveries are managed by the DHL group. Deliveries are around 5 working days from time of shipment, except for the “Custom” category: for these products, considering the unique and handcrafted finishing process, deliveries are around 20 days from receipt of the order.
More about: Shipping and Returns
More about returns and refunds
By browsing and purchasing on our website, you agree to our Terms & Conditions. Please review them for detailed information on your rights, order processing, payments, and returns.
More about: Tearms of service
Avvisami quando disponibile
Specs

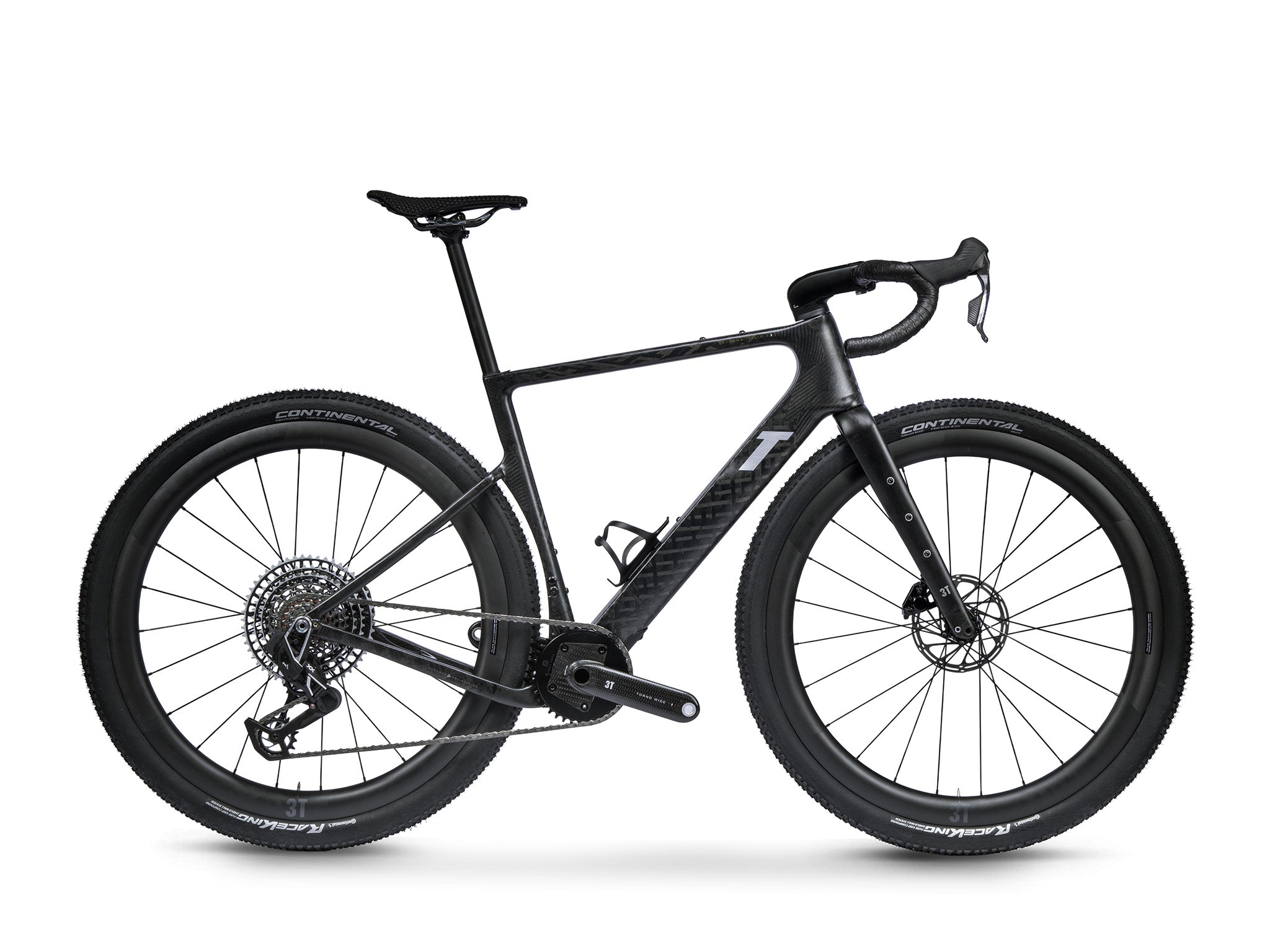

EXTREMA ITALIA ~ FORCE E1/XX SL EAGLE TRANSMISSION AXS 1X12 DISCUS 45/40 CTi
- Telaio
- 3T Extrema Italia Integrale (UDH)
- Materiale del telaio
- Processo di filament-winding proprietario di 3T con una combinazione di fibre ad alta resistenza/alta rigidità, combinate con iniezione di resina RTM. Made in Italy
- Forcella
- 3T Fango Extrema Integrale con testa forcella compatta e supporti per accessori
- Serie sterzo
- 3T MinMax Integrale IS42/34 | IS52/40 (36 gradi)
- Perno passante
- 100x12 anteriore - 142x12 posteriore (specifico per forcellino 3T UDH)
- Handlebar
- 3T Superghiaia Integrale LTD (51: 40cm - 54&56: 42cm - 58: 44cm)
- Nastro manubrio
- 3T Prendo Tough
- Stem
- 3T More (K-Edge GPS mount included) - (51: 80mm - 54:90mm - 56: 100mm - 58: 110mm)
- Bottle cage
- 3T Carbon front load water bottle cage
- Rear derailleur
- Sram XX SL Eagle Transmission T-Type
- Shift/brake levers
- Sram Force AXS E1
- Brakes
- Sram Force E1 Hydraulic Disc w/ Sram 160mm rotor
- Crankset
- 3T Torno Wide 40T ( 51: 170mm - 54&56: 172,5mm - 58: 175mm)
- Cassette
- Sram XX SL Eagle Transmission XS 1297 T-Type 10-52T
- Wheelset
- 3T Discus 45I40 LTD Carbon Ti hubs
- Tires
- Continental Race King 700x50c
- Reggisella
- Reggisella tondo 3T Carbon 27.2 - Zero offset
- Saddle
- San Marco Shortfit 2.0 3D Carbon FX
CM
INCHES
What's my frame size?
Choosing the right bike size is crucial for a comfortable and enjoyable ride. Use this chart to pick the size which fits your body. Please note, this is merely a suggestion. For the best results, we recommend a professional bike fitting with an expert.
GEOMETRIES
| Size | 51 | 54 | 56 | 58 |
|---|---|---|---|---|
| Rider Height (cm) | 157-171 | 168-180 | 176-186 | 183-195 |
| Rider Height* (inches) | 5'2"-5'7" | 5'6"-5'11" | 5'9"-6'1" | 6'0" 6'5" |
| Stack | 547 | 570 | 590 | 610 |
| Reach | 358 | 368 | 376 | 384 |
| Headtube angle | 69.1 | 70.5 | 71.5 | 72.0 |
| Fork axle-crown | 387 | 387 | 387 | 387 |
| Front center | 620 | 612 | 617 | 626 |
| Rear center | 437 | 437 | 437 | 437 |
| BB drop | 79 | 76 | 76 | 74 |
| Wheelbase | 1044 | 1036 | 1040 | 1050 |
| Toptube length | 529 | 547 | 561 | 575 |
| Seattube length | 466 | 491 | 521 | 549 |
| Seattube angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Max. Seatpost insertion | 179 | 206 | 236 | 265 |
| Lowest Seatpost Height with RockShox Reverb AXS XPLR (350mm) | 637 | 635 | 635 | 650 |
DESIGN IN DETAILS
60MM DOWNTUBE NECK:
Upper downtube necks down to 60mm to pick up the airflow coming off the front tire.
75MM DOWNTUBE BASE:
Lower downtube aero profile is 75mm wide to fully shield water bottle.
SIZE-SPECIFIC DOWNTUBE:
Reduced depth on smaller sizes to keep frame compliant and keep space for bottles.
PERFECT AERO CUTOUT:
Close-fitting cutout to shield the rear wheel and achieve the most speed.
MONSTER 700c CLEARANCE:
Clearance for up to 57mm WAM (29”/700c)!
MIND THE GAP:
No oversized gaps between front tire & downtube for better airflow transition and less turbulence.
MINIMALIST CROWN:
Fork crown shapes haven’t changed much since brakes were attached there. Now that we have disc brakes, we don’t need that bulk of material and can reshape the crown for better strength, stiffness and weight. Plus better aerodynamics.
FORK ACCESSORY MOUNT:
Equipe your Extrema for adventure using the three accessory mount rivets on either side of the fork for an anything cage.
DOUBLE-DROP CHAINSTAYS:
Dropping the drive-side chainstay improves tire & crank clearance. Dropping the other side as well creates a much more efficient structure behind the BB for higher stiffness & strength as well as lower weight.
THREADED BB:
Most of our complete bikes come with threaded BBs for the best alignment and to avoid any issues. Yet we avoid gluing threaded alloy rings into the carbon (added weight, complexity and debonding risk). Read more here.
DIRECT-MOUNT REAR BRAKE:
Standard frames require an adaptor to use a 160mm brake rotor. We have integrated that into the frame, meaning you don’t need any extra pieces to attach the brake.
DIRECT-MOUNT FRONT BRAKE:
Standard forks require a flip-flop adaptor to set the correct brake rotor size. Our direct-mount pre-sets the caliper for 160mm rotors without any extra pieces.
INTEGRATED FENDER MOUNTS:
Invisible until you need them.
AERO SEATTUBE+ROUND SEATPOST:
The seat tube is kept aero yet it fits a round 27.2mm seatpost so you have many round, wireless dropper or suspension post options.
UDH COMPATIBLE:
Designed solely for electronic groupsets. Thanks to its UDH rear derailleur hanger, it is compatible with all regular rear derailleurs as well as the new SRAM Eagle Transmission rear derailleurs that feature a hangerless direct-mount design.
DEDICATED K-EDGE GPS MOUNT INCLUDED
Designed specifically for the 3T MORE INTEGRALE.
